Visual Flow Indicators

Name: Visual Flow Indicators
Brand: LEVEL AND FLOW CONTROL ENGINEERS
Price: 300-100000 INR
Availability: InStock

Price 300-100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Visual Flow Indicators Specification

Measuring Range
Visual observation (no scale)

Protection Level
IP65 Equivalent

Connectivity Type
Inline pipe connection

IP Rating
IP65 Equivalent

Mounting Type
Flange or Threaded

Features
Rugged construction, Easy observation, Corrosion-resistant

Output
Visual only

Installation Type
Inline/Flange Mounted

Usage & Applications
Water, oil, chemical process lines

Display
Visual/Glass Window

Product Type
Visual Flow Indicator

Operating Temperature
Up to 120C

Working Temperature
Up to 120C

Pressure Type
Standard

Diameter
1/2 inch to 4 inch

Application
Liquid flow observation

Accuracy
Visual detection only

Dimension (L*W*H)
Depends on line size, compact design

Weight
Variable as per size

Maintenance
Low, easy to clean and inspect

Corrosion Resistance
Excellent, suitable for most industrial liquids

Color
Silver metallic

Flow Direction
Bidirectional

Window Material
Toughened Glass

Seal Material
PTFE/Viton/Gasketed

End Connection
Threaded/Flanged

Maximum Working Pressure
Up to 10 bar

Body Material
Borosilicate Glass/SS 304/SS 316

Indicator Type
Rotary wheel or Flapper type

Visual Flow Indicators Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
2000 Pieces Per Year

Delivery Time
2 Week

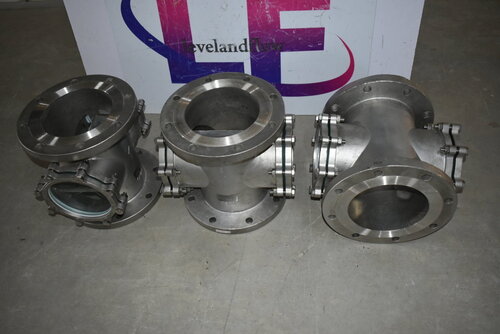

About Visual Flow Indicators

We are the most trusted name, engaged in offering superior quality Visual Flow Indicators, which is ideal for observing fluid characteristic of severely corrosive liquids. Our offered indicator is immensely appreciated for its durability, accurate dimensions, corrosion resistant finish, provides the clear inspection of fluid characteristic and reliable performance. Provided indicator is checked by our expert quality inspector keeping in mind the set quality norms. Our valued customer can avail this Visual Flow Indicators in various specifications.

Specifications:

MOC: CS, SS, PP
Size: 1/2" to 32"
Pressure: Up to 100 Bar
Temperature: Up to 1500 deg C
Standards: All International Std like JIK, ANSI, BS, DIN, IS

Product details

Minimum Order Quantity	4 piece
Brand	BeeKay

Rugged Construction for Industrial Reliability

Engineered with premium materials like SS 304/316 and toughened glass, our visual flow indicators deliver enduring performance in harsh conditions. The corrosion-resistant design ensures suitability for water, oil, and most chemical process lines, maintaining integrity even at high pressures and temperatures. Compact and rugged, these devices are built for long-term use.

Effortless Observation and Maintenance

The clear glass window enables immediate visual confirmation of flowwith rotary wheel or flapper movement indicating presence and direction. Maintenance is minimal: the device is easy to clean and inspect, allowing quick access without major process interruption. This user-friendly feature fosters operational safety and efficiency on the shop floor.

FAQs of Visual Flow Indicators:

Q: How do I install a visual flow indicator in my pipeline?

A: Visual flow indicators can be easily installed inline using flange-mounted or threaded end connections, depending on your pipeline design. Ensure proper alignment and sealing with PTFE, Viton, or gasketed seals to prevent leaks and preserve IP65 equivalent protection.

Q: What types of liquids can be monitored using these indicators?

A: These indicators are suitable for water, oil, and a wide range of industrial chemicals, thanks to their borosilicate glass and stainless steel construction which offers excellent corrosion resistance and compatibility with most process liquids.

Q: Where are visual flow indicators typically used?

A: They are widely deployed in process lines for chemical plants, water treatment facilities, oil refineries, and wherever visual confirmation of liquid flow is required in industrial settings.

Q: What is the maximum pressure and temperature that these indicators can withstand?

A: These devices support working pressures up to 10 bar and operating temperatures up to 120C, making them suitable for demanding industrial environments.

Q: What maintenance is required for visual flow indicators?

A: Maintenance needs are minimal due to their simple, rugged design. Regular inspection and cleaning are recommended to ensure the glass window stays clear for unhindered visual observation.

Q: How does the indicator work without a measurement scale?

A: These indicators provide visual confirmation of flow presence and direction via a rotary wheel or flapper seen through the window. They do not measure flow quantity but allow operators to detect movement and verify the systems operation at a glance.

Q: What are the benefits of choosing these indicators for my process line?

A: Choosing these indicators offers you reliable, real-time visual flow verification, low maintenance requirements, robust corrosion resistance, and significant operational safety, making them cost-effective for continuous industrial use.
