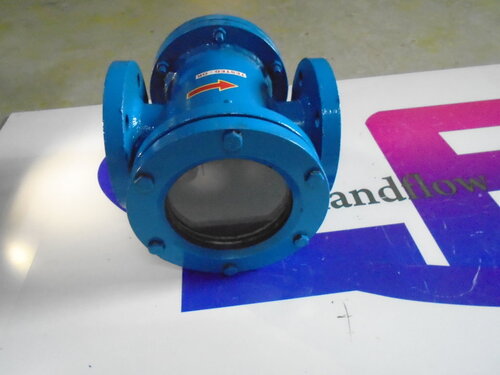

Glass Flow Indicators

Name: Glass Flow Indicators
Brand: LEVEL AND FLOW CONTROL ENGINEERS
Price: 300-100000 INR
Availability: InStock

Price 300-100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Glass Flow Indicators Specification

Features
Transparent toughened glass, corrosion-resistant, easy inspection, durable

Connectivity Type
Mechanical/Flanged/Threaded connection

Display
Visual/Transparent Glass Window

Mounting Type
Horizontal/Vertical Pipe Mounting

Sensor Type
Mechanical Visual Indicator

Installation Type
Inline, Flanged, Threaded

Output
Visual Flow Indication

Protection Level
Glass material, non-electrical component

Usage & Applications
Observation of liquid flow in pipes, monitoring, process control

IP Rating
Not Applicable for non-electric type

Measuring Range
Wide range depending on model (typically 0.5 to 150 m3/hr)

Product Type
Glass Flow Indicator

Operating Temperature
Up to 200°C

Working Temperature
-20°C to 200°C

Input
Mechanical Flow

Pressure Type
Hydrostatic/Process Pressure

Diameter
15 mm to 250 mm (custom sizes available)

Application
Industrial process lines, chemical, oil & gas, water treatment

Accuracy
Visual theoretical indication

Dimension (L*W*H)
Varies by model and connection size

Weight
Depends on size, approx. 1 to 10 kg

Standards Compliance
Manufactured as per international standards ISO/DIN/BS

Body Material
Stainless Steel, Cast Iron, Brass, or PVC depending on requirement

Connection Type
Screwed, Flanged, or Socket Weld ends as per process

Maintenance
Low maintenance; tool-free glass cleaning possible

Indicator Type

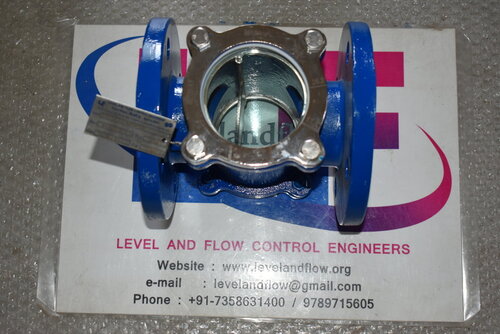

Rotary wheel or flapper type indicator options

End Connections
ANSI/BS/DIN standards available

Flow Direction
Bidirectional or Unidirectional depending on model

Service Media
Suitable for water, oil, chemicals, and semi-viscous fluids

Working Pressure
Up to 10 kg/cm2 (depending on design and size)

Temperature Resistance
High temperature resistant gaskets and seals

Glass Type
Borosilicate Toughened Glass

Seal Material
PTFE, Neoprene, Viton as per process compatibility

Customization
Available as per client specification and application

Glass Flow Indicators Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
2000 Pieces Per Year

Delivery Time
2 Week

About Glass Flow Indicators

We are involved in offering perfect to Glass Flow Indicators our valued clients. Our Flow Indicators, which are used for monitoring the flow rate of fluids. Provided indicators are acknowledged for our client centric approach, negligible pressure drop, complete visibility, perfect finish and almost no flow limitations. Our offered glass flow indicator mainly consists of a small housing equipped with a glass window, which is inserted in a run of pipe to observe the flow of the fluid in the pipe. Our esteemed patrons can purchase these Glass Flow Indicators from us at market leading prices.

Product details

Minimum Order Quantity	5 Number
Packing Flange	Aluminium
Brand	BeeKay
Size	1/2 inch through 8 inch
Connections	Flanged to ASA 150/300,BS10 or DIN. Standards and screwed BSP,NPT.
Material	CS,SS
Temperature	up to 1500 Deg C
Pressure	10 kg/cm2

Optimized for Diverse Industrial Applications

Glass Flow Indicators provide accurate visual monitoring in chemical processing, oil and gas, water treatment, and various industrial lines. The selection of body and seal materials enables compatibility with a wide range of process fluids, granting operational confidence and minimizing downtime.

Customizable Design for Every Requirement

These indicators allow customization in body material, connection type, diameter, and seal composition to fit specific client needs. With options for bidirectional or unidirectional flow and high temperature resistance, each unit can be tailored to the process, meeting international standards and application demands.

FAQs of Glass Flow Indicators:

Q: How do Glass Flow Indicators facilitate visual flow monitoring in pipelines?

A: Glass Flow Indicators feature a transparent borosilicate toughened glass window and a mechanical indicatorrotary wheel or flapper typethat provides immediate, visual confirmation of fluid movement within the pipe, helping users readily verify flow conditions in industrial processes.

Q: What installation methods and connection options are available for these indicators?

A: These units can be installed with inline, flanged, threaded, or socket weld connections, compatible with ANSI, BS, and DIN standards. They support horizontal or vertical mounting, ensuring adaptability for different pipeline configurations and process requirements.

Q: When is it necessary to choose a specific body or seal material for Glass Flow Indicators?

A: Selection of materials like stainless steel, cast iron, brass, or PVC, as well as seals made from PTFE, Neoprene, or Viton, depends on the chemical compatibility, operating temperature, and pressure of the process media. This ensures durability, safety, and optimal performance under various conditions.

Q: Where can Glass Flow Indicators be utilized effectively?

A: These indicators are ideal for installation in industrial process lines in sectors such as chemical production, oil and gas, water treatment, and any application requiring safe, transparent monitoring of liquid flow in pipes.

Q: What is the process for cleaning or maintaining Glass Flow Indicators?

A: Glass Flow Indicators are designed for easy, low-maintenance use. Tool-free glass cleaning is possible, allowing routine inspection and cleaning without specialized skills or equipment, reducing maintenance time and enhancing operational efficiency.

Q: How does customization benefit the user in industrial applications?

A: Customization allows users to specify body material, seal type, connection standard, and indicator style, ensuring the Glass Flow Indicator fits precise requirements of process media, operating conditions, and existing system design, which improves reliability and performance.
